Description

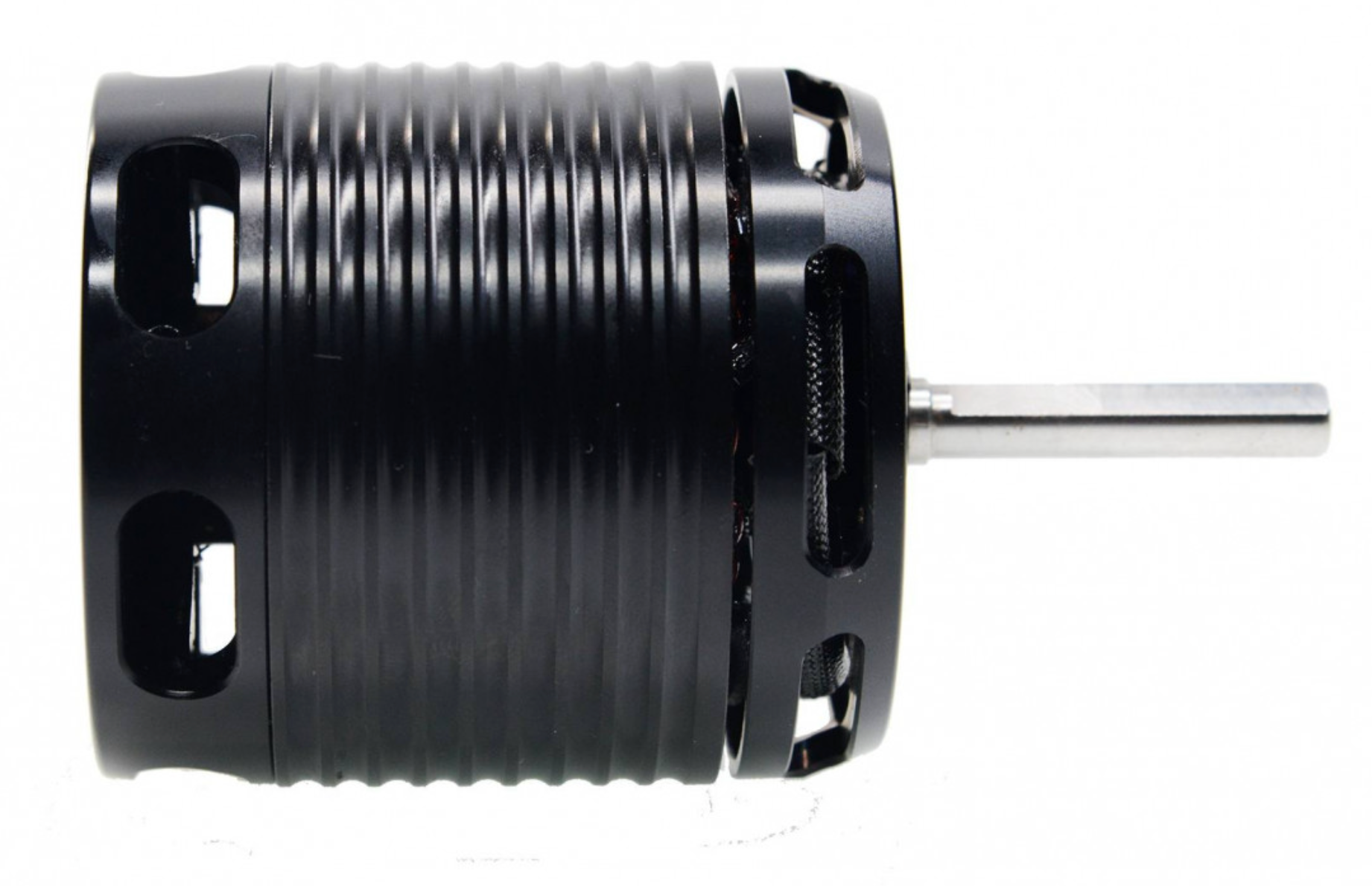

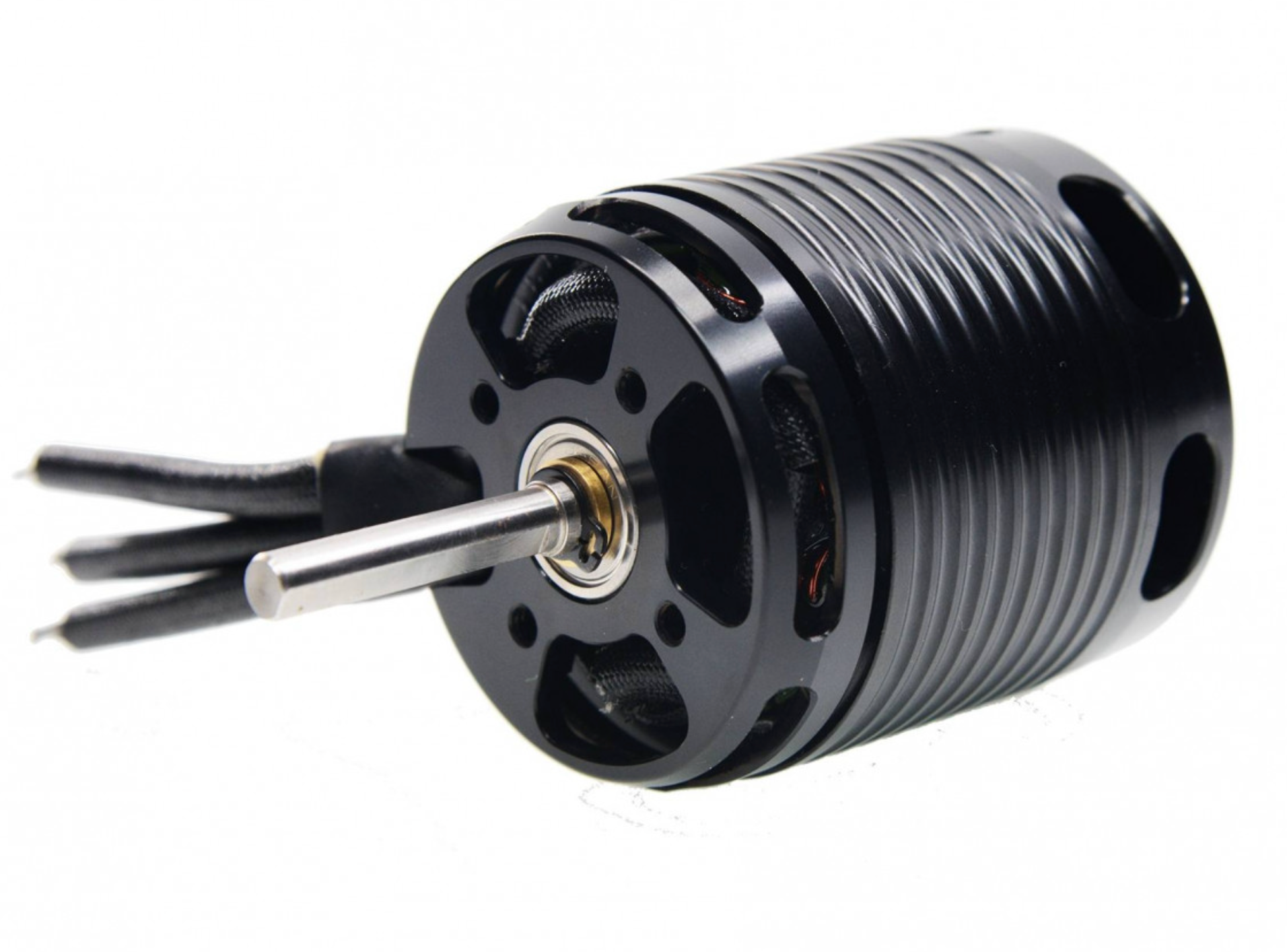

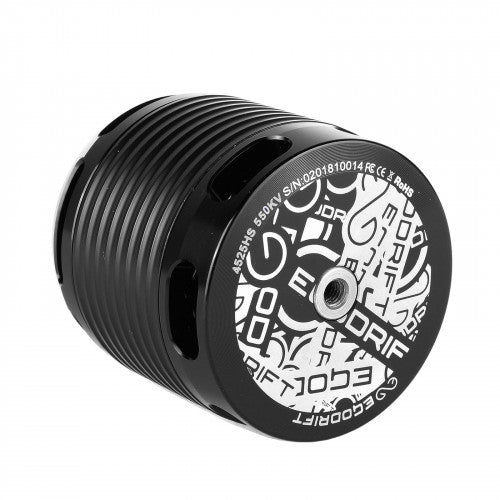

EGODRIFT Tengu high-performance brushless motor are the result of one year of development and testing. The 4525HS Tengu comes with a kV rating of 550kV and fits all 700mm class helicopters, such as the XLPower Spectre 700, Goblin 700, T-Rex 700, Gaui 700, Mikado 700, Align 700 (and various other models).
All CNC parts are processed in our EGODRIFT factory on our Japanese Tsugami precision CNC machines for the utmost in precision and quality. We apply the same high standards to all other components used in the making of this motor, so it features EZO bearings, a custom made stator and special high temperature copper wire.
External length of the shaft: 35mm or 55mm
SPECIFICATIONS
- Manufacturer: EGODRIFT
- Stator size: 4525
- Motor configuration: 12N10P
- Motor weight: 460g
- Base Colour: Black
- Wire colour: Copper
- Motor wire type: High temperature copper wire
- Motor wire: 1.3mm
- Motor shaft: Hardened Steel
- Shaft diameter: 6.0 mm
- LiPo cells: 12S, 14S
- Motor kV: 550 kV
- Stator diameter: 45 mm
- Stator height: 25 mm
- Stator lamination: 0.15 mm (+)
- Body Length: 55.58mm (2.19 inch)
- Diameter: 56.4mm (2.22 inch)
- Screw hole diameter: 4,0 mm
- Motor hole pattern: 30mm
- Idle current: 3.5A
- Maximum Current: 120A (Peak: 220A / 2 seconds)
- Maximum Power: 5760W (Peak: 10560W / 2 seconds)
- Internal resistance: 11.5 mOhm
- Connection: Wire / Gold plated plugs
- Designer: Yutao Zou
What's in the box
- 1x Tengu 4525HS/550kV motor for 700 sized helicopters
- 35mm or 55mm exterior length shaft (please choose)
- 3 x Gold plated connectors, Male
- 3 x Gold plated connectors, Female
- 4 x Mounting screws
- 1 x Bell securing screw
