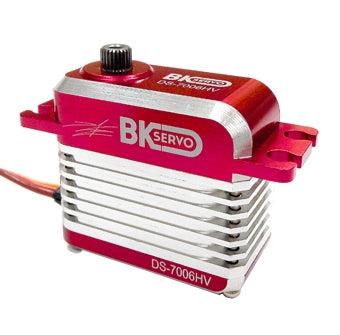

Standard Size Tail Servo DS-7006HV
Roll over image to zoom in Click on image to zoom
Standard Size Tail Servo DS-7006HV

Standard Size Tail Servo DS-7006HV

BK DesignsSKU: BKFS06
Price:
$131.51CAD

Description

This high end standard size tail servo offers lightening fast speeds and it is 100% high voltage compatible. Ideal for any helicopter that accepts standard size servos.
Features
  • High Voltage
  • High Speed
  • Excellent Centering
  • Compatible with Futaba type horns/arms
  • Light Weight
  • Operation Voltage: 6V – 8.4V
  • Weight: 68g (2.4 Oz)
  • Torque: 8.4 kg.cm (116.7 oz.in) @ 6V | 9.6 kg/cm (133.3 oz.in) @ 7.4V | 10.6 kg.cm (147.2 oz.in) @ 8.4V
  • Speed: 0.035 sec/60 @ 6V | 0.032 sec/60 @ 7.4V | 0.03 sec/60 @ 8.4V
  • Dimensions: 20x40x37 mm
  • Frequency: 760us/333 hz
  • Gear Type: Metal
  • Motor Type: Coreless
