Description
This is the Combo Version,

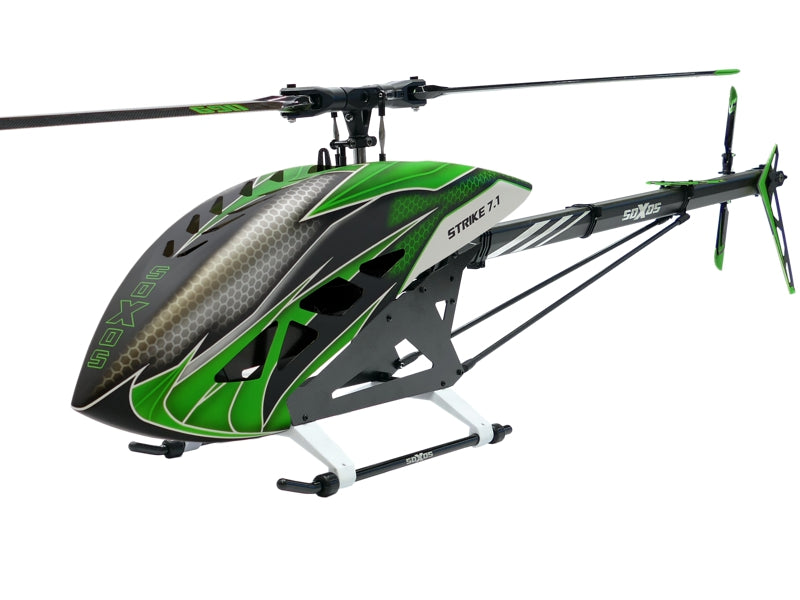

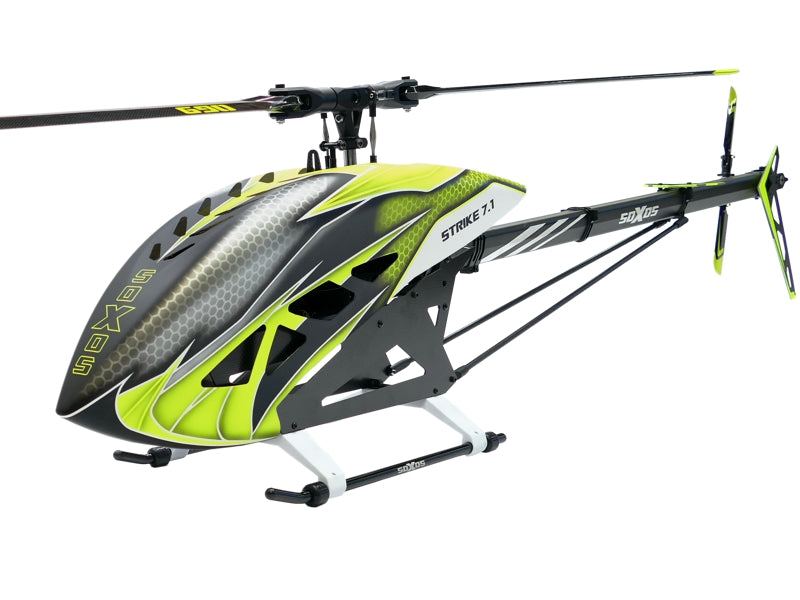

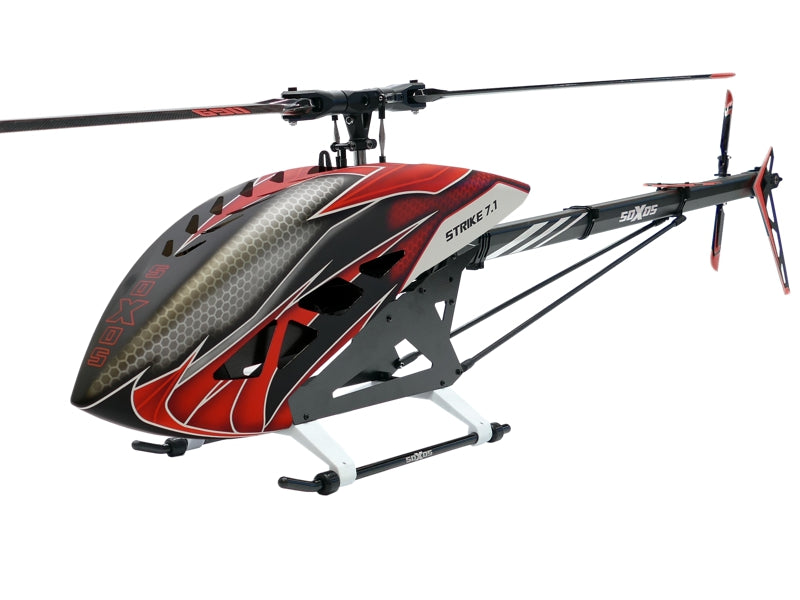

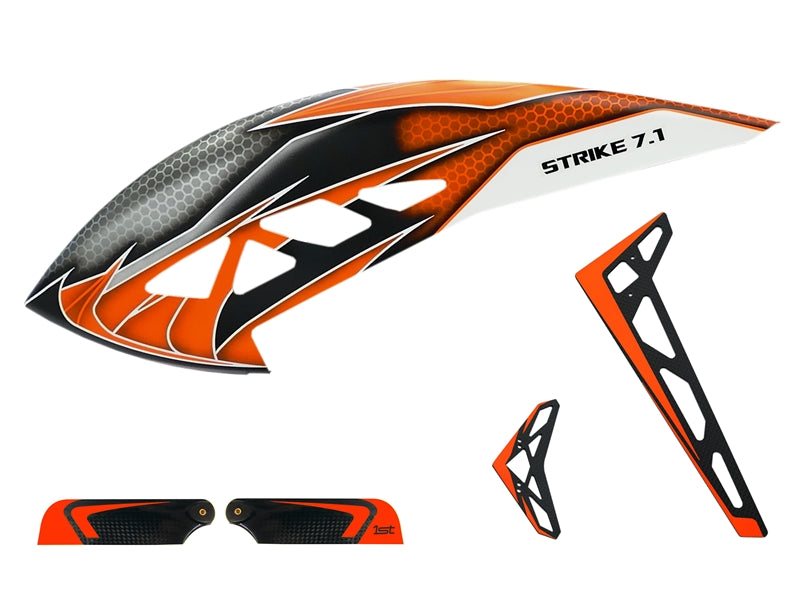

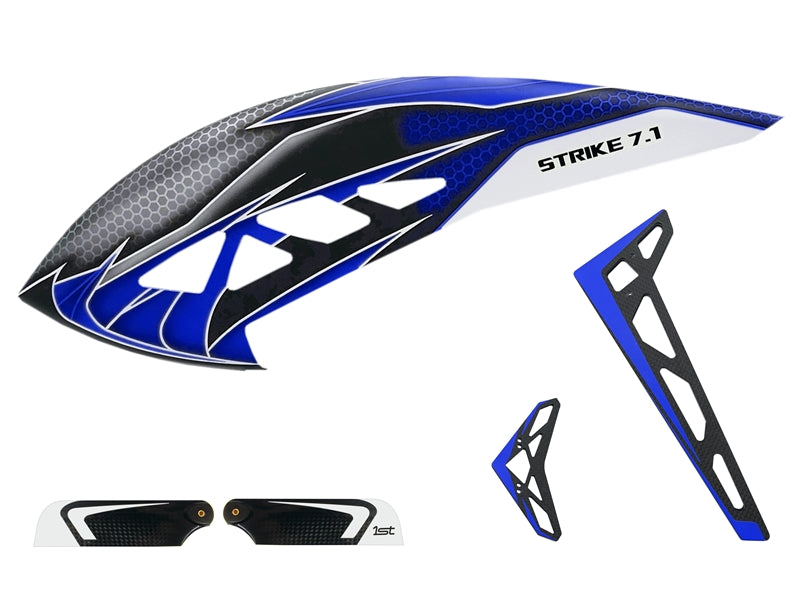

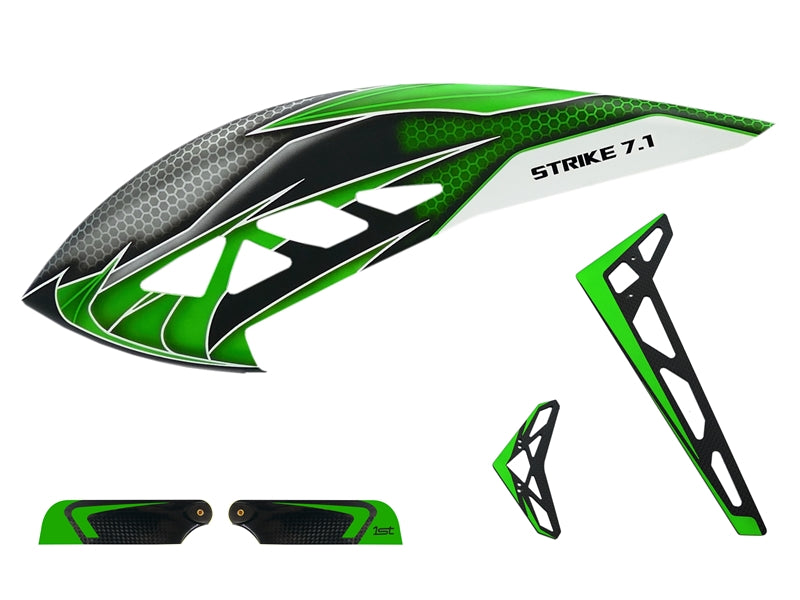

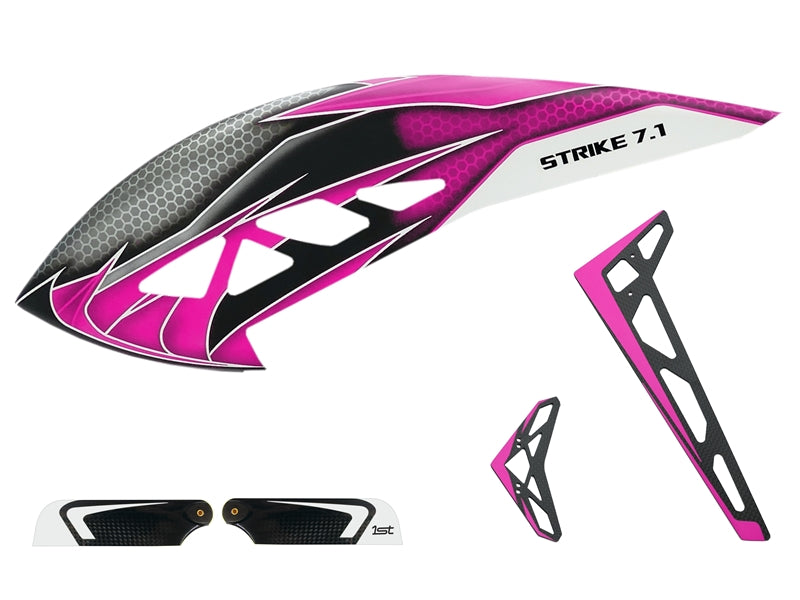

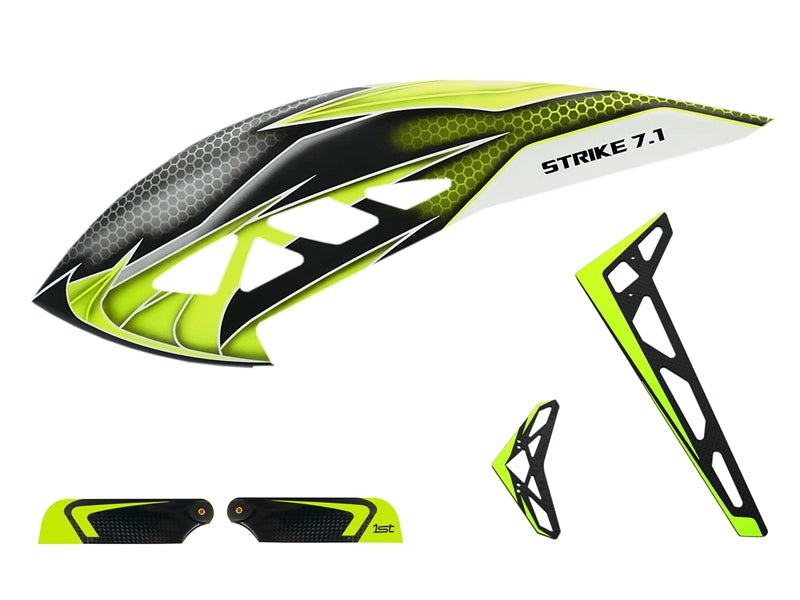

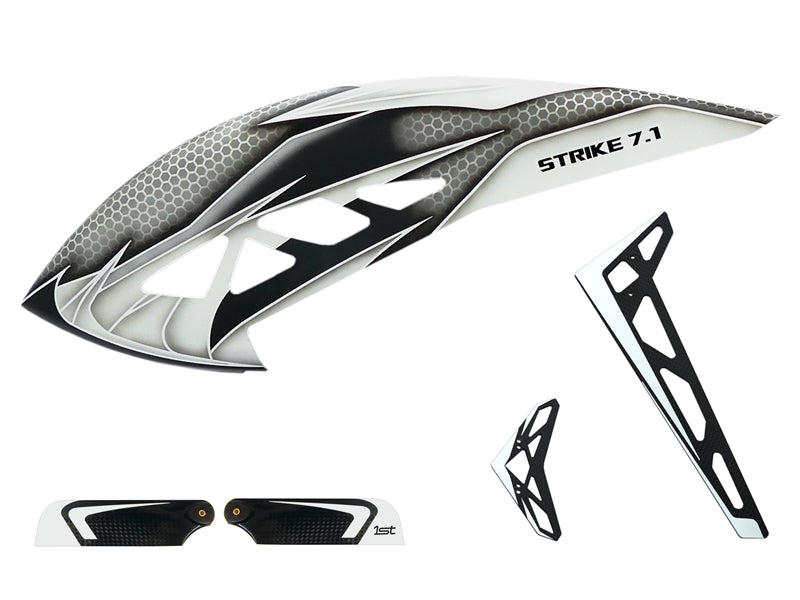

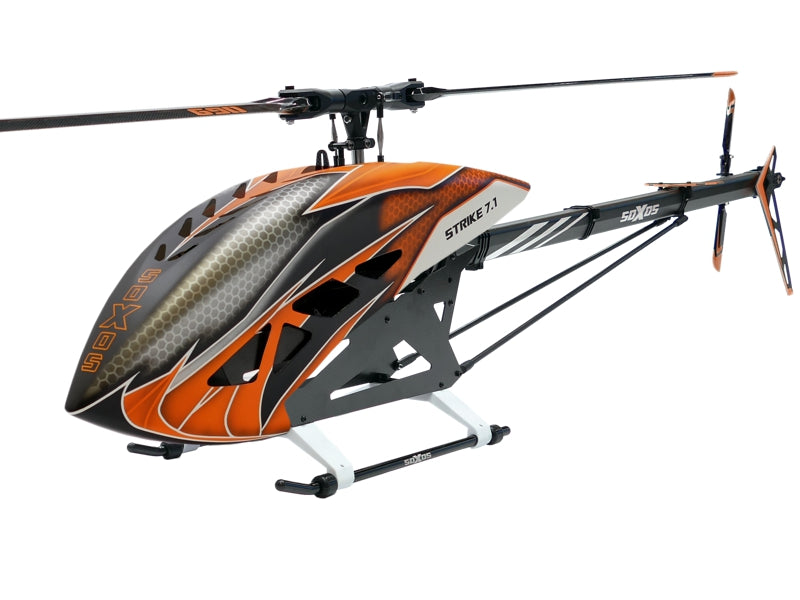

Available colours Yellow, Orange, Green, Red, White, Blue and Pink
With so many colours this new helicopter will be available by Pre-order only. Shipping will be calculated and billed once the helicopter is ready to ship. It will take @ 10 - 14 days to arrive in Alberta
One 1st Servos 3015 Tail servo
SIZE (mm): 40.3 x 20.2 x 38.7
WEIGHT:(g): 69.0BEARING: 2B
BGEAR: Metall
HOUSING:: Plastic / Aluminium
FREQUENZ: 330Hz / Digital 1520uS
VOLTAGE: 8.4 Volt:
SPEED sec/60°: 0.055
TORQUE kg-cm: 23.0
Three 1st 3010 Swash servos
SIZE (mm): 40.3 x 20.2 x 38.7
WEIGHT:(g): 69.0
BEARING: 2BB
GEAR: Metall
HOUSING:: Plastic / Aluminium
FREQUENZ: 330Hz / Digital 1520uS
VOLTAGE: 8.4 Volt:
SPEED sec/60°: 0.055
TORQUE kg-cm: 23.0
Hobbywing 150A ESC.
1st Motor 4125-830KV,
Technical specifications:
Diameter Motor: 50mm
Length Motor: 53mm
Diameter Shaft : 5mm
Length Shaft: 32mm
RPM: 830 KV
Lipo max.: 8S
Poles: 12N10P
Weight: 346g
Holes: 2x M3/25mm and 2xM4/30mm
Maximum Current: 80A (Peak: 95A / 2 seconds)
Maximum Power: 2520W (Peak: 3000W / 2 seconds)
You only need the Flybarless and the Lipo Battery 6s-5000 - 6500 mAH to make it RTF.
The Flight weight is around 4.1 KG.
