Description

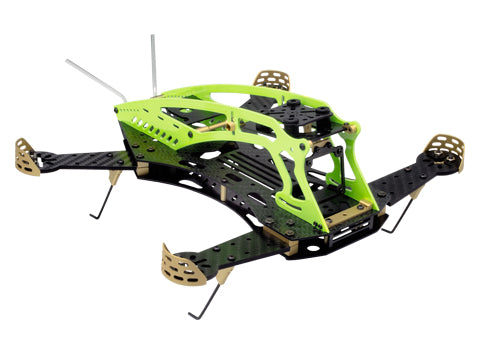

280 class FPV racing quadcopter
Product Description
Scorpion is proud to introduce a new 280 class FPV racing quadcopter, The “Scorpion Sky Strider 280”. This ultimate racing quadcopter is designed to provide fast, stable and agile maneuverability, allowing it to compete on any extreme racing course.

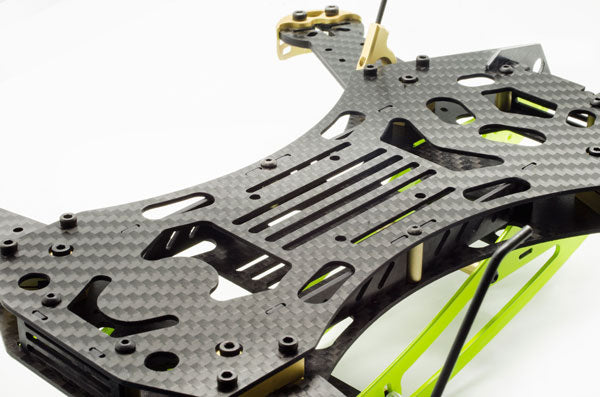

Carbon composite materials are used to provide the frame with very high structural integrity. Every single part of the Sky Strider frame is aerodynamically designed and specially structured to help maintain stable straight-line flight, yet still be fast and predictable during maneuvers.
The durable piano wire undercarriage allows the Sky Strider to easily land on any rough surface without damage the frame. Adjustable battery positions allow the user to get a perfect CG with any camera and FPV transmitter.

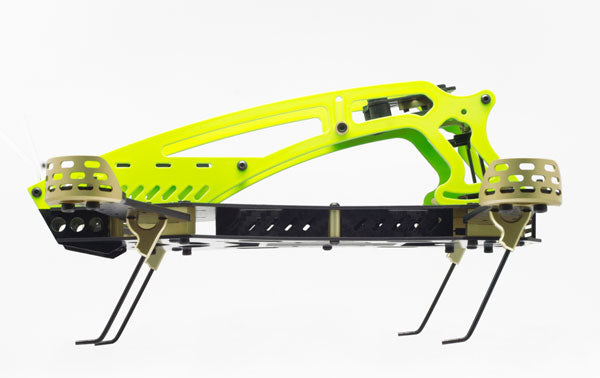

To provide enhanced visibility while flying in sunlight or in the dark, the top frames are painted with a unique high-visibility green coating.
Clear and stable FPV video feeds help the pilot maintain better control of the quadcopter during a race. To provide a stable video feed, the Sky Strider camera mount includes a built-in damping system with vertical angle adjustments. The unique one-piece camera mount and damping system work together to isolate vibration from the FPV camera, providing a clear view for the pilot.
Copter arms are the most commonly damaged parts during flight. The Scorpion Sky Strider provides replaceable arms that are easy to change at the field. To replace an arm, simply remove 1 screw that holds the arm in place, then loosen 2 screws on the arm clamp, and the arm can be removed in 1 easy step, making the repair at the field fast and easy.
Included in the Box
UPPER FRAME x2 MOTOR ARM x4 UPPER DECKx1
LOWER DECK x1 ALUMINIUM CROSS MEMBER x2
FRONT FRAME MOUNT x1 LENS FIXING BOARD x1
FIXING PLATE BRACKET x4 TRANSMITTER BOARD x1
LENS SUSPENSION PLATE x1 SUSPENSION BALL x4
DECK CROSS MEMBER x6 FRAME STRAIGHTENER x4
STRAIGHTENER x2 UNDERCARRIAGE x4 LENS PLATE x1

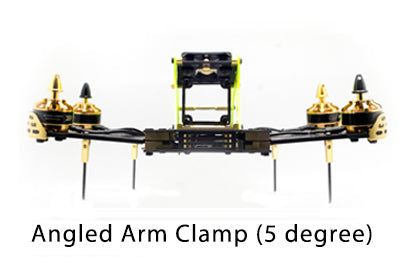

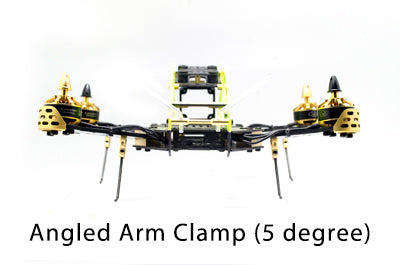

ZERO DEGREE ANGLED ARM CLAMP x4
ANTENNA TUBE x2 MOTOR GUARD x4
M3 *4 set screw x4
M2 * 4 round phillips x 8
M2.5 *6 hexagonal round x26
M2.5 *6 hexagon head x2
M2.5 *12 hexagon head x4
M2.5 *14 hexagon head x8
M3 *6 flat head x2
