Description

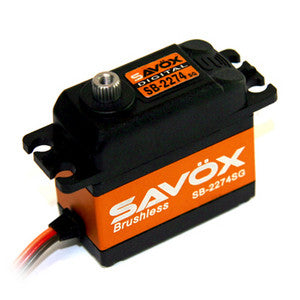

This high speed brushless servo is all you will ever need for 1/8th and 1/10th scale trucks and buggies (electric and nitro). The SA-2274SG is the servo that always performs like a champion. Pushing 347oz. you will leave everyone in your dust. What more could you ask for really?
Features:
- Combines leading edge
technology with super high 12 bit (4096) resolution and unique steel gears. - Super light-weight.
- Brushless motor provides extremely high speed, incredible efficiency, and amazingly low power consumption.
- The full aluminum case design not only looks good but also allows for cooler and smoother operating temps.
- Our servos are totally green � from materials to production, these servos are environmentally friendly.
- Ideal for 1/8th or 1/10th scale trucks and buggies (electric & nitro) and giant scale aircraft. Also suitable for use in boats and helis.
Dimensions(mm): 40.3x20.2x38.5
Weight(g): 69.0
Speed(@6.0V sec/60): .105
Torque(@6.0V oz-in): 277.7
Speed(@7.4V sec/60): .080
Torque(@7.4V oz-in): 347.2
Gear: Unique Steel
Bearing: 2BB
Case: Full Aluminum
25 Tooth Spline
