Description

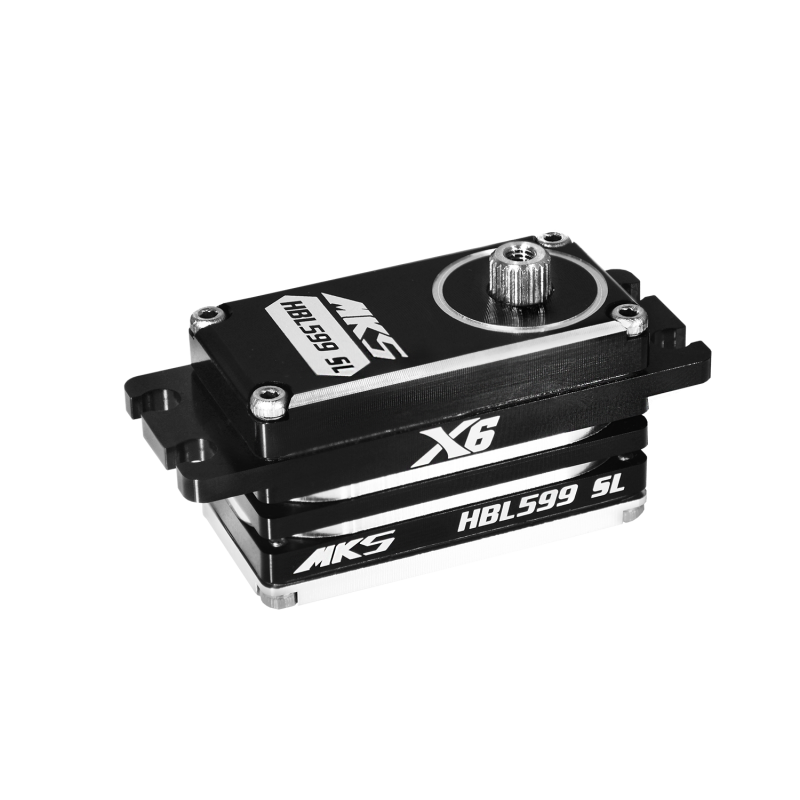

| SKU | MKS-HBL599SL | |
| Quantity in stock | 614 item(s) available | |
| Dead Band | 0.0008ms (Default) | |
| Spline Size | 6mm 25 tooth | |
| Control System | +Pulse Width Control | |
| Working Frequence | 1520μs / 333hz | |
| Operating Voltage | 3.5 ~ 7.4 Volts | |
| Operating Temperature Range | -10 to + 60 Degree C | |
| Operating Speed (4.8V) | 0.14 sec/60° degrees at no load | |
| Operating Speed (6V) | 0.11 sec/60° degrees at no load | |
| Stall Torque (4.8V) | 222.2 oz/in (16 kg/cm) | |
| Operating Speed (7.4V) | 0.09sec/60° degrees at no load | |
| Stall Torque (6V) | 249.9 oz/in (18 kg/cm) | |
| Stall Torque (7.4V) | 319.4 oz/in (23 kg/cm) | |
| Motor Type | Brushless Motor | |
| Potentiometer Drive | Indirect Drive | |
| Bearing Type | 12x8 mm Double bearings | |
| Gear Type | Metal alloy gear | |

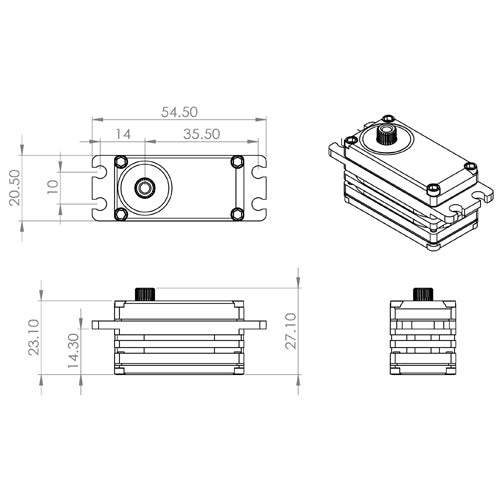

| Dimensions | 40 x 20.5 x 23.1 mm | |
| Weight | 53.5 g (1.89oz) | |
