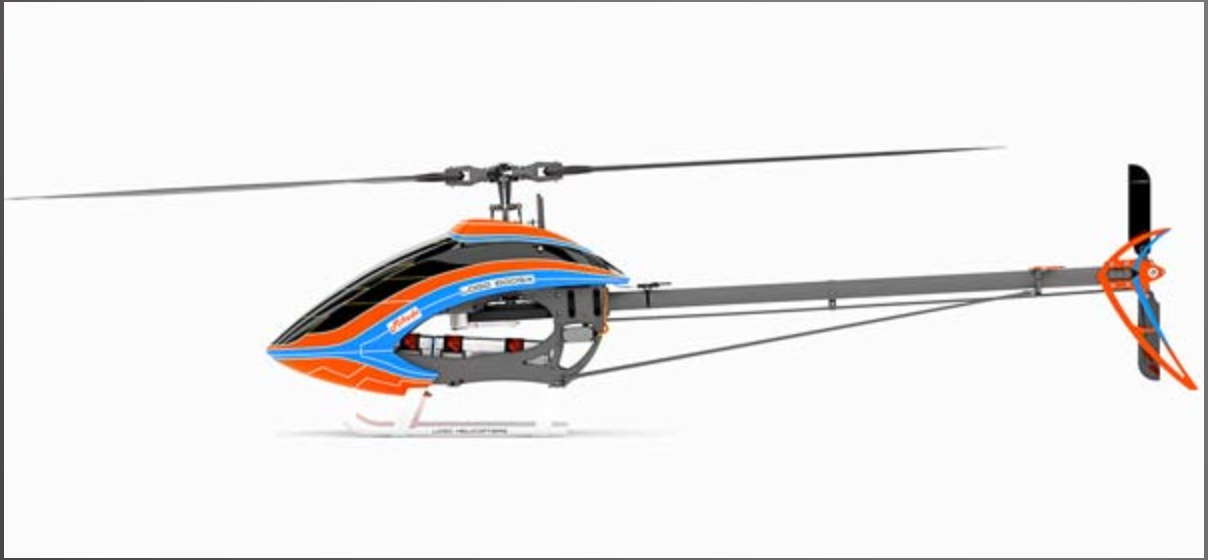

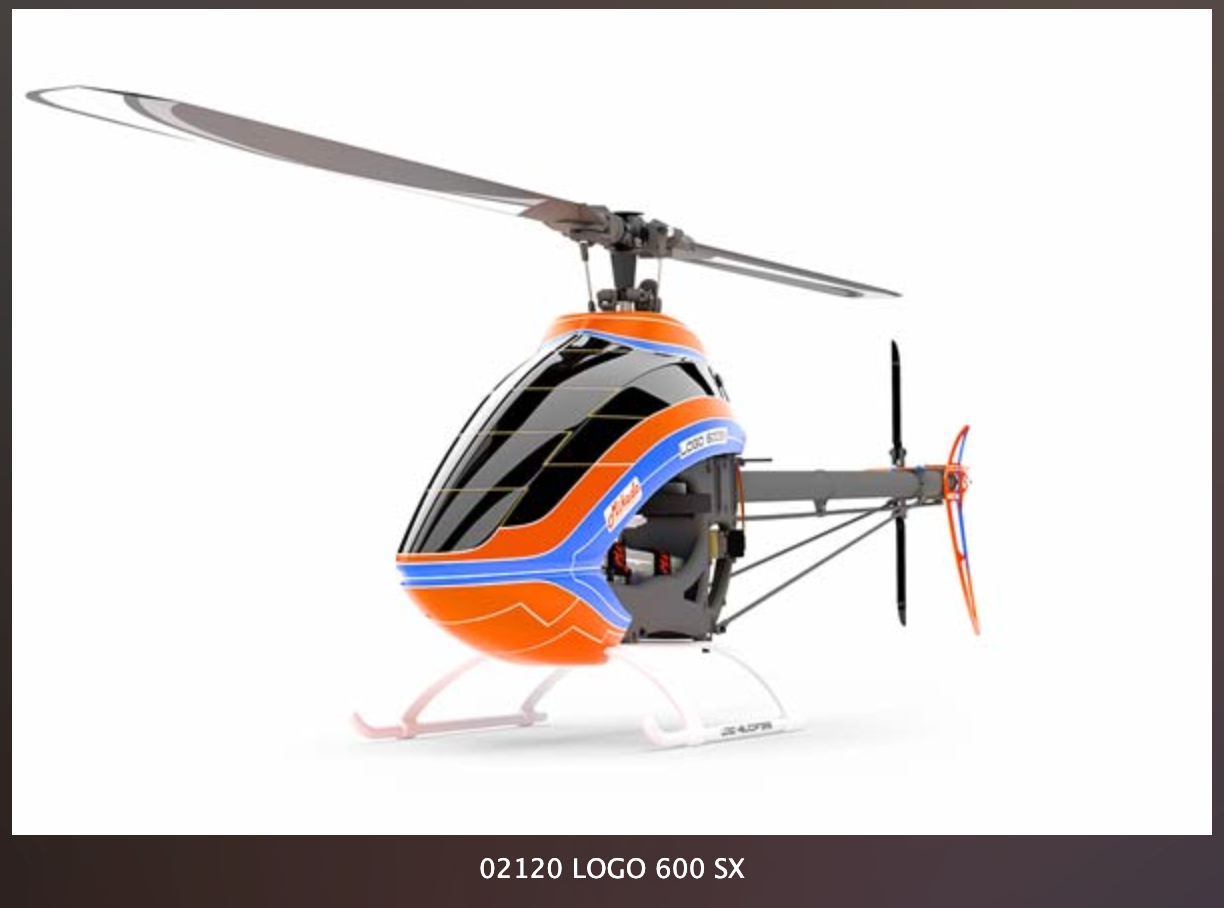

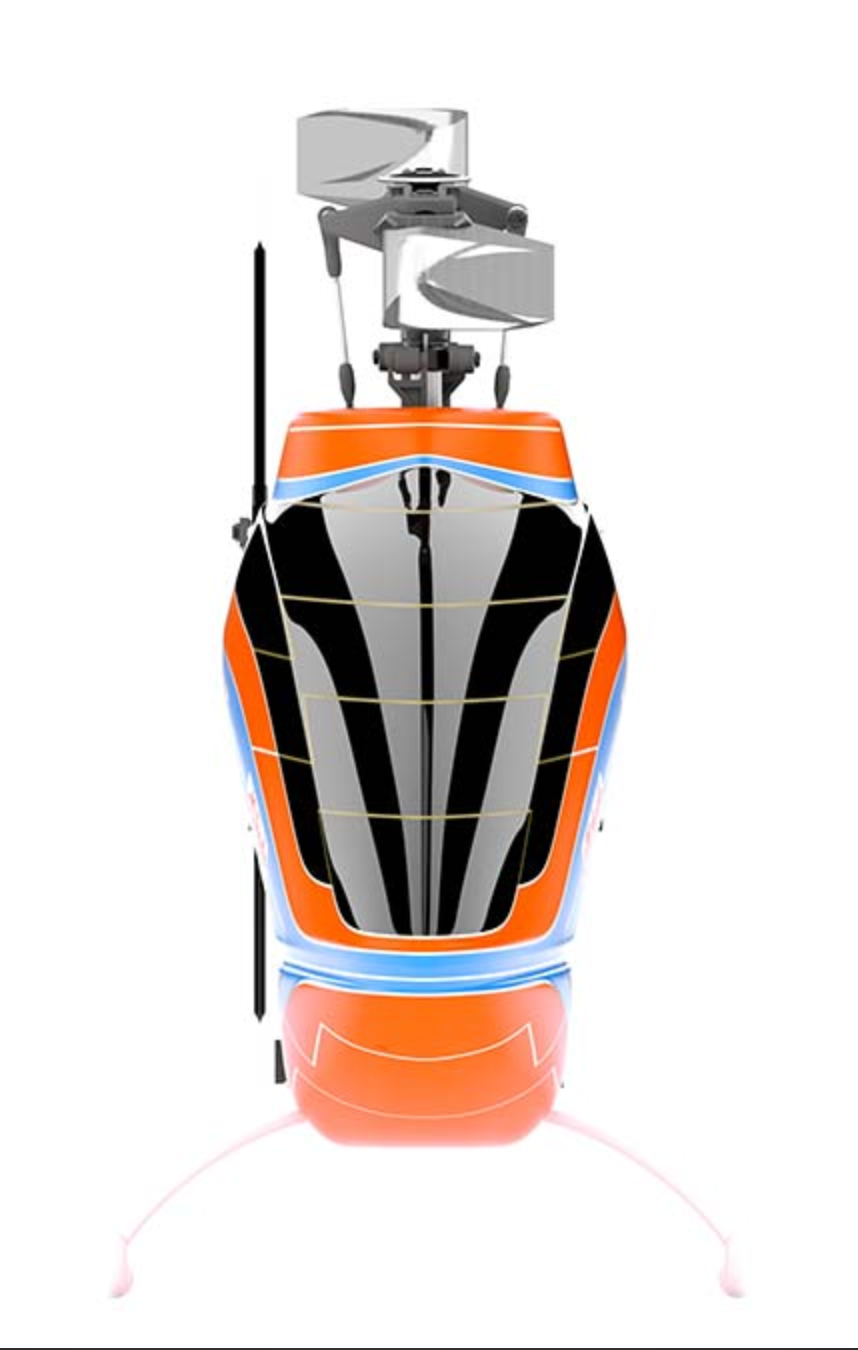

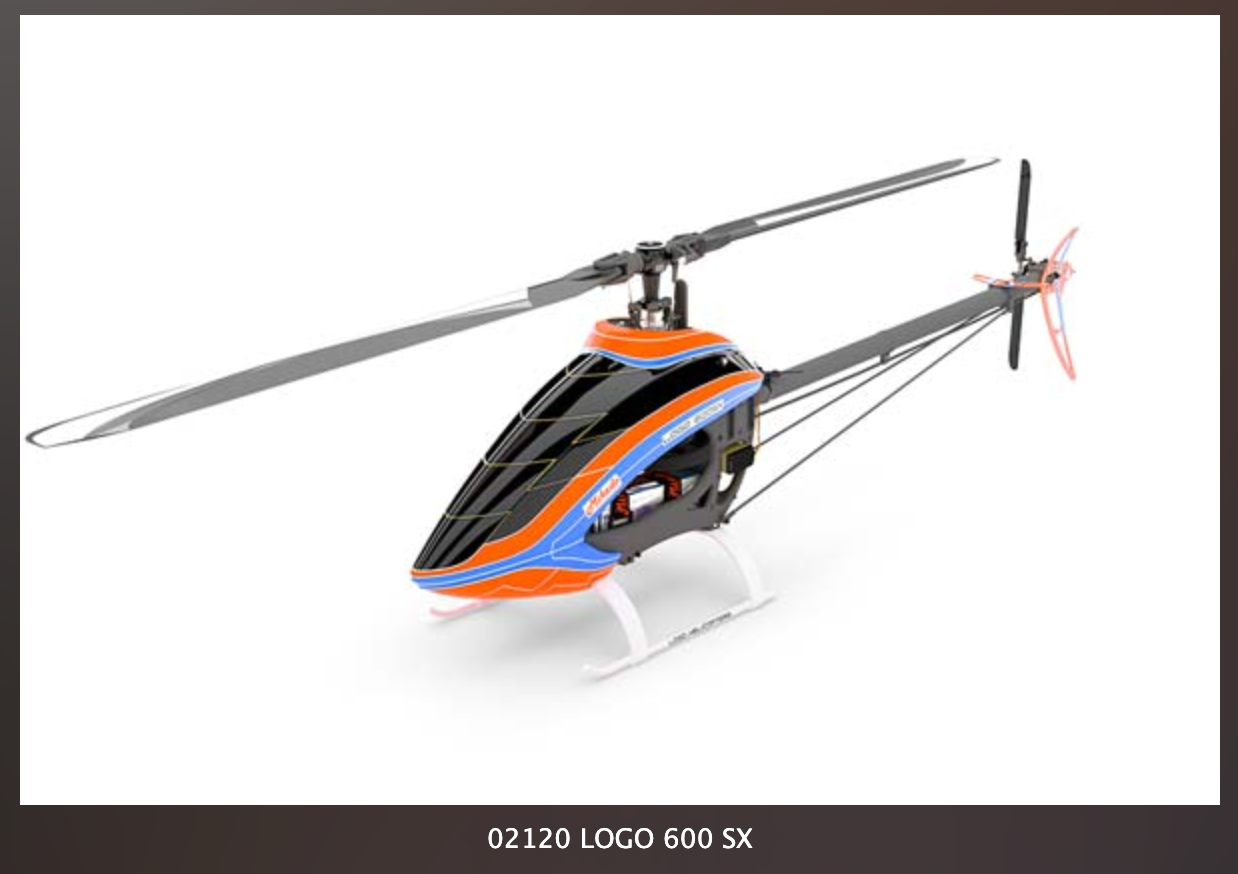

LOGO 600 SX
LOGO 600 SX is the next step in the LOGO 600 Series. The LOGO 600 SX keeps all the proven and popular components of the LOGO 600, while incorporating several new developments to sustain today’s technical requirements during extreme flight manoeuvers.
- 600-620 mm main blades
- 10 S Lipo mit 5,000 mAh, 12 S Lipo, max 3,500 mAh

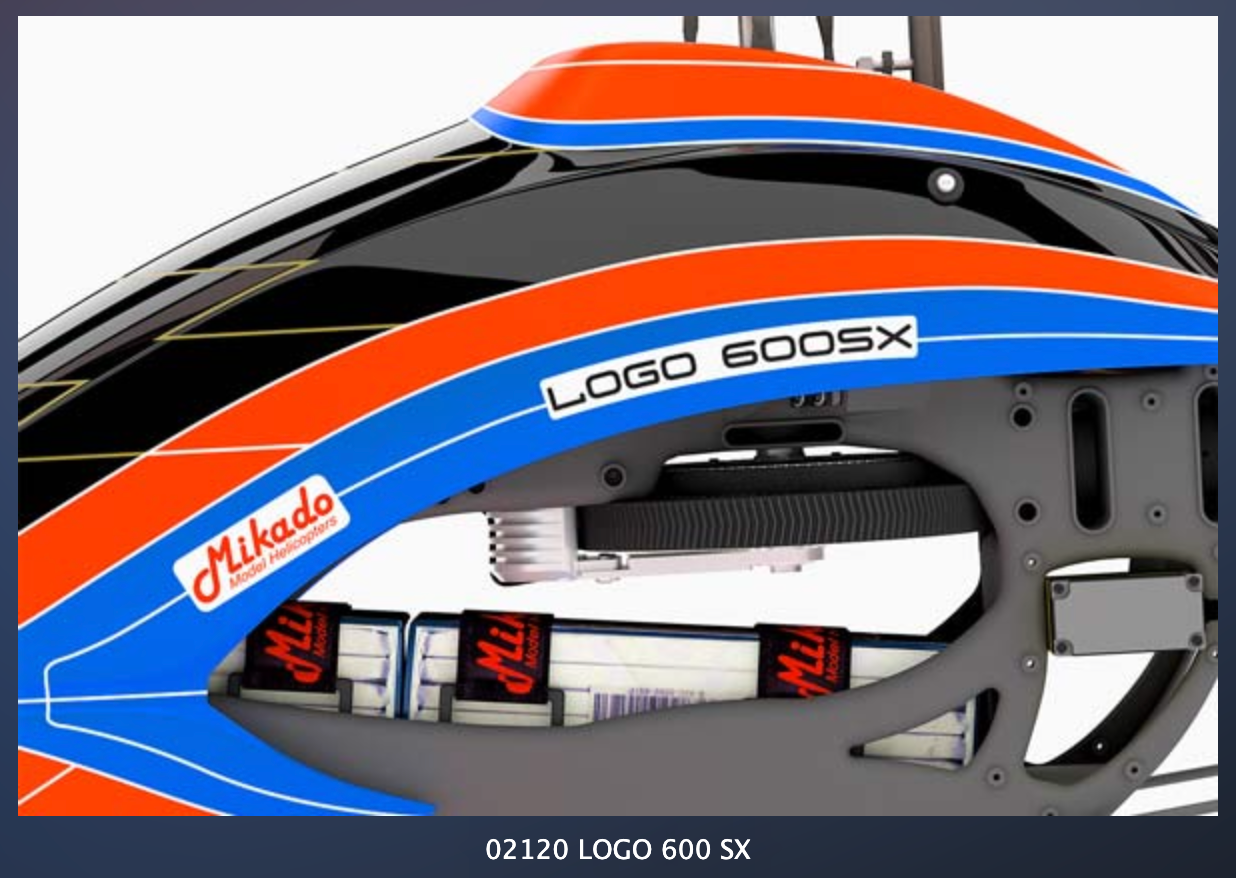

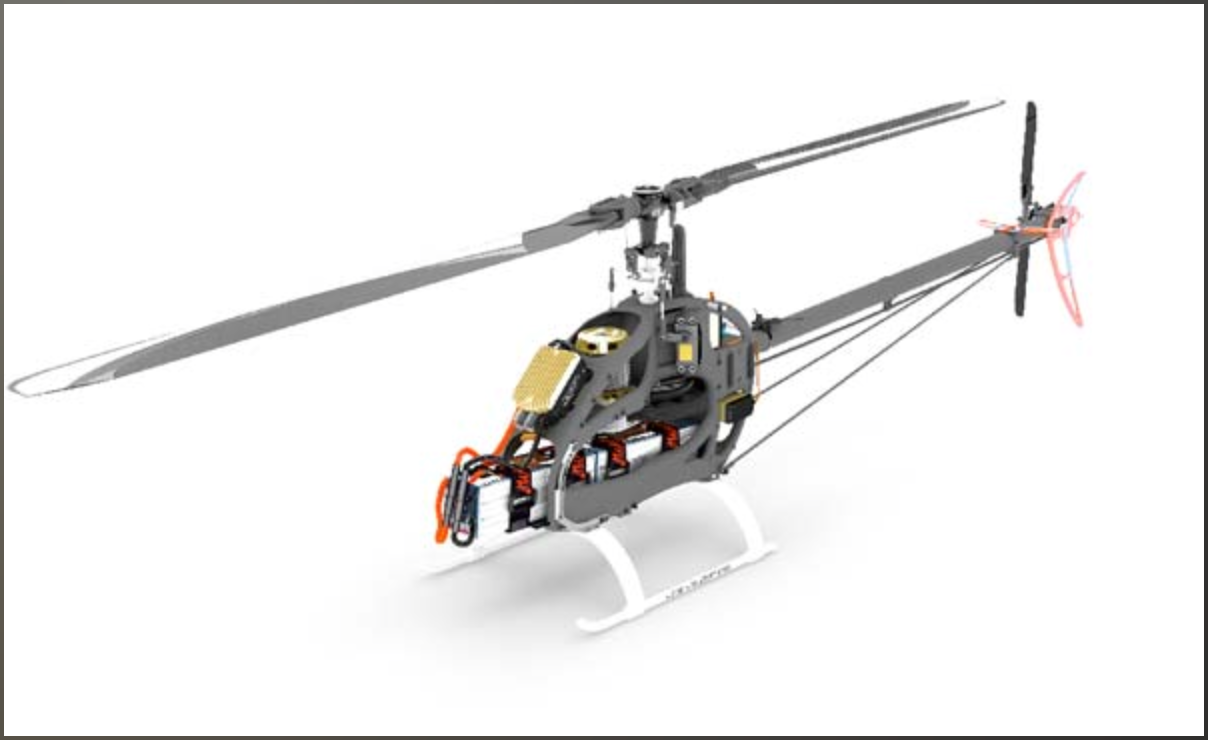

- light and durable fiberglass reinforced chassis frame with battery quick release system

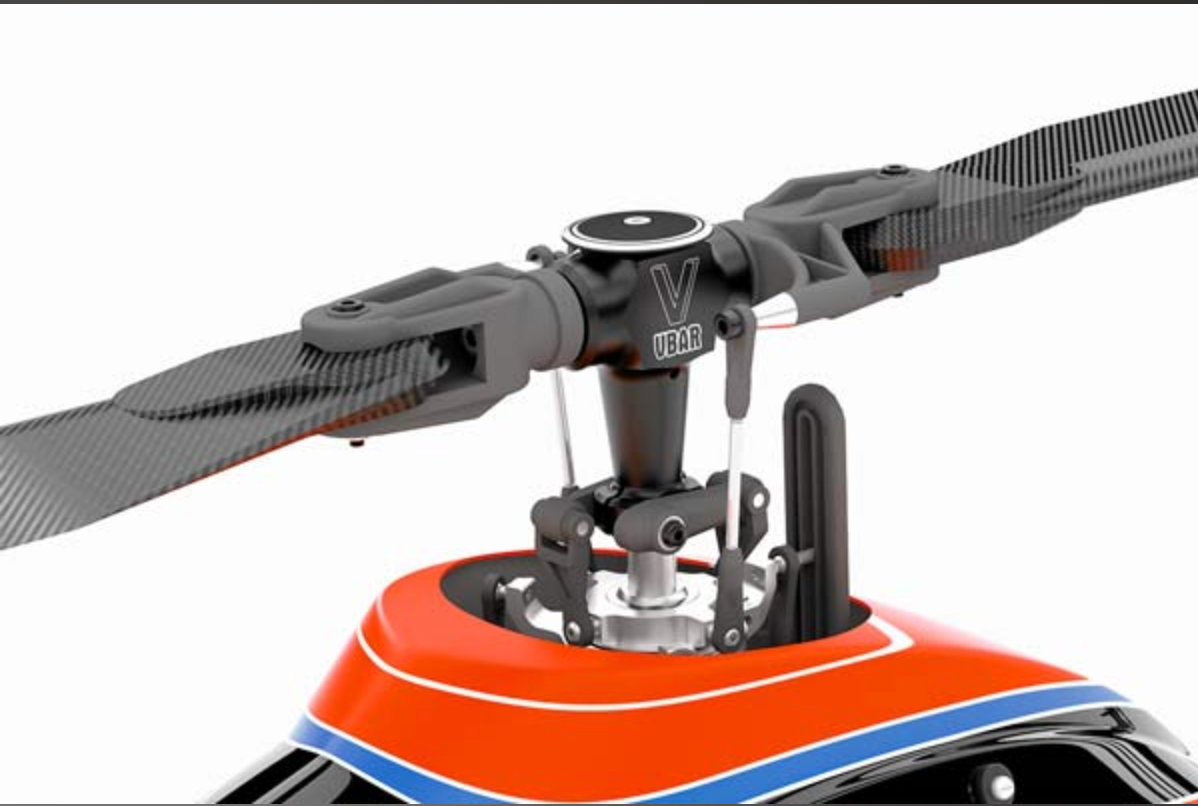

- alu-rotor head yoke with hollow 8 mm spindle shaft and extra-large thrust bearings (Ø 16 mm)
- direct servo link to the swashplate
- hollow main shaft with 10 mm diameter
- herringbone main gear with 106 teeth (module 1)
- motor counterbearing with additional main shaft support
- colored fin set in neon red, matched with the canopy
- extra-large 25 mm diameter tail boom
- detailed airbrush canopy
