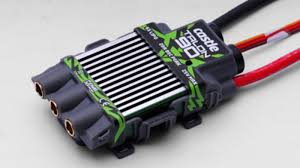

CASTLE CREATIONS TALON 90A ESC W/HIGH OUTPUT 20A BEC

alon 90: the ESC with the biggest BEC.
Talon 90 sports a BEC designed for today’s servos, pumping out up to 20 amps peak power and 9 amps of continuous power to keep even the hungriest servos happy.

Designed for Helis
Talon 90 is ideal for helicopters drawing 2,000 watts on 6S. It’s a great fit for extreme 500 and 550 class helis and sport (6S) 600 setups. Of course, Talon 90 offers Castle's industry-leading helicopter functions, such as the unbelievable direct entry governor mode. Simply type in the desired RPM using a Castle Link USB adapter (sold separately) and the free Castle Link GUI running on a Windows PC!

Great for Fixed Wing
Talon 90 is perfect for aerobats up to 10 pounds and scale ships up to 20 pounds. The innovative case ensures cooling in even the toughest mounting locations.

Unbelievable Pricing
Talon 90 delivers all this power for only $89.95 – premium performance and features at an amazing price!

Assembled in the USA and/or Mexico from parts sourced globally.

Castle Creations, Inc. warrants this product to be free from manufacturing defects for a period of one year from date of purchase.

Talon 90 Specs
Retail price	$89.95
Item number	010-0097-00
Input voltage	MIN: 3S LiPo MAX: 6S LiPo
Max continuous amperage at full throttle	90 amps (rating determined with 5mph airflow across the ESC)
BEC voltage (voltage regulator for powering radio and servos)	User selectable choice of 6 or 8 volt output
BEC output	20 amp peak* 9 amp continuous
Dimensions	Width: 1.7" (43mm) Length: 3.14" (80mm) Depth: 0.7" (18mm) Mounting bracket adds 2mm depth and 8mm width
Weight	3.0 oz. (84.5g) with 150mm power wires and no battery connectors
Items needed for operation or installation	Battery connector (sold separately) Female motor bullets are built into the ESC Matching male bullets are included
Programmability	Fully programmable Castle feature set using Castle Link USB adapter (coupon for free Castle Link adapter included in package) and freely downloadable Castle Link Windows software.

*Peak indicates amperage sustainable for 0.5 seconds - long enough for most servos' current draw transients. Always confirm servo servo current draw before the first flight of the model.
