Description

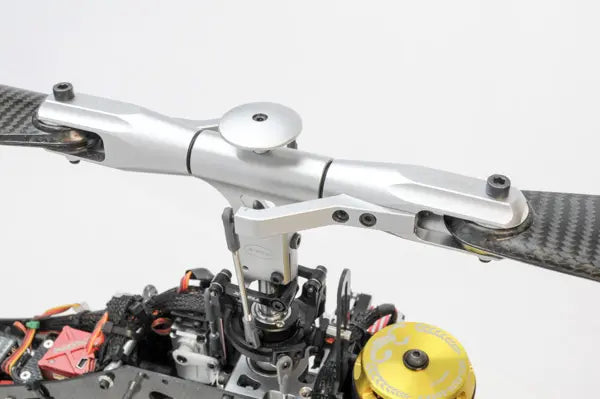

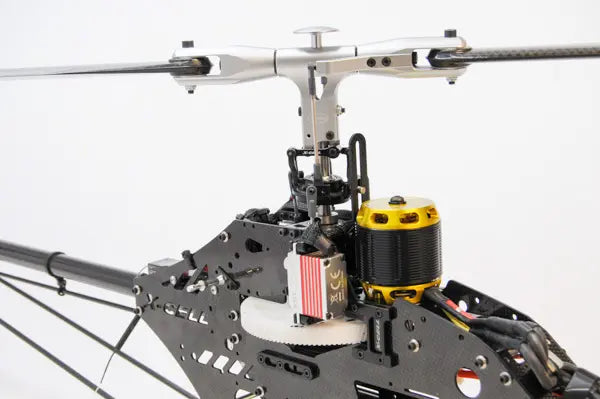

Rotor Head:
- Direct controlled 120 (degree) CCPM
- Heavy duty linkages
- 9mm head axle
- CNC machined aluminum swashplate
- CNC machined main rotor grips
- CNC machined main rotor head
- High quality swashplate heim ball/ball bearing
Chassis

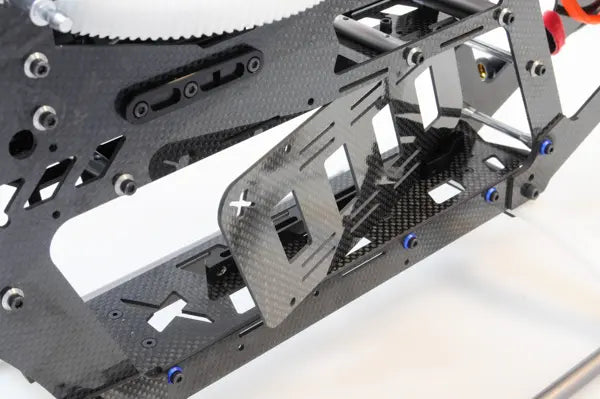

- New aggressively-styled, stiffer frames with side-by-side battery mounting for better GC control, increased cyclic and tail rate capabilities for more locked-in, slop free controls, and easier battery change-outs.

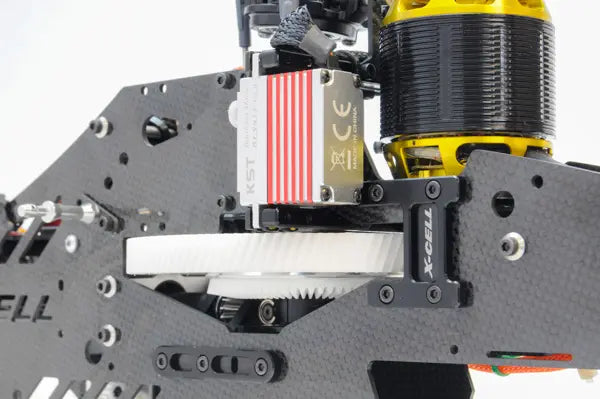

- 20° helical drivetrain with hardened steel pinion gear and CNC machined main gear.
- Improved gear ratios of 9:1 and 9.75:1 to match todayŸ??s motor Kv market.
- Adjustable motor mount for fine tuning gear mesh.
- Steel-sleeved main gear hub eliminates middle bearing block wear.
- True 6061-T6 CNC machined aluminum components
- CNC machined aluminum triple main shaft bearing blocks
- Narrowed tuff strut landing gear
- Ball bearing supported pinion gear
- Improved electronics placement and wiring options

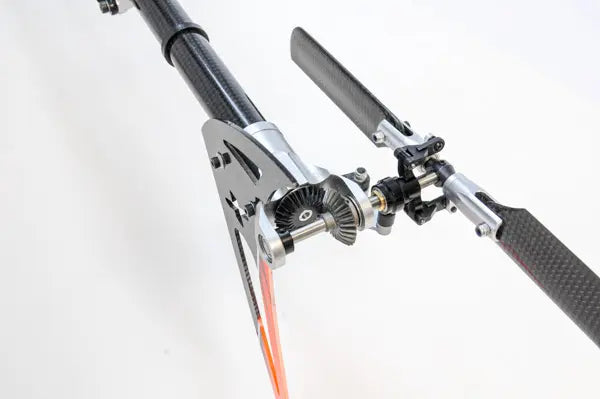

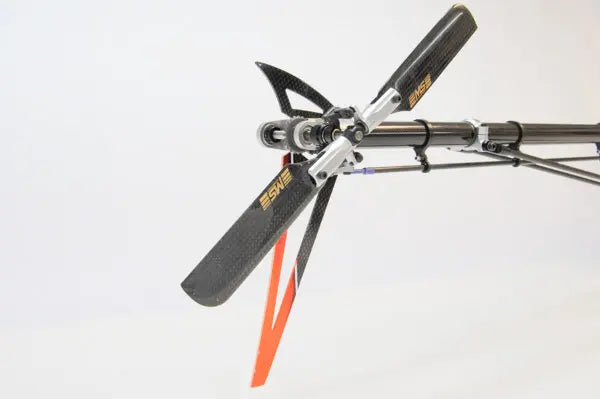

Tail Rotor
- Full ball/thrust bearings
- Graphite tail fin
- CNC aluminum open gearbox
- Carbon 22mm tail boom
- Hardened tail rotor output shaft

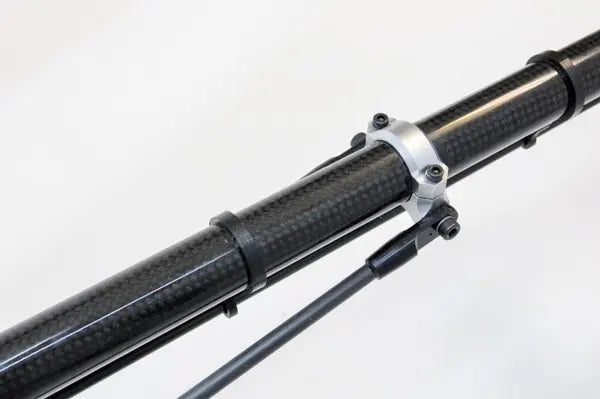

- Carbon/Aluminum boom supports and CNC machined aluminum boom clamps

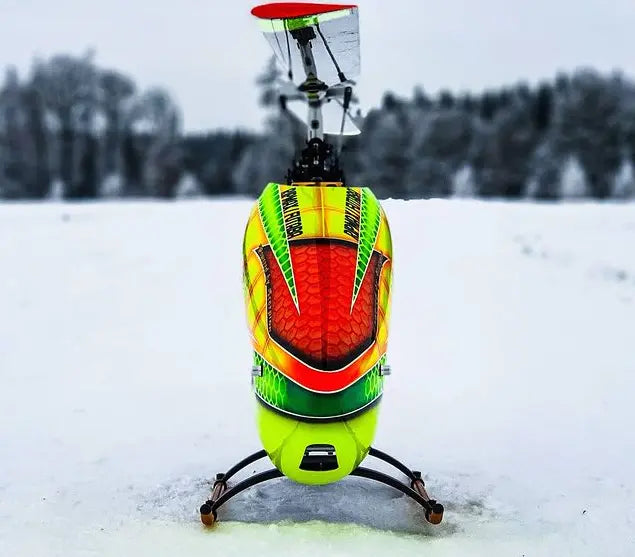

Canopy:
- New high-visibility painted canopy
Model Specifications
- Length: 52.5" (1333mm)
- Height: Flybar - 16.5" (419mm)
- Rotor Span: 1561-1601mm - 690-730mm blades
- Tail Rotor Span: 286mm with 105mm T/R blades
- Avg. Ready-to-Fly Weight: 11.5-12.5lbs - 5.22-5.67kg (w/batteries)
- Main Rotor Blades: 690-730mm
- Power: 12S, 490-560KV
